Self-Reversing Manually Controlled Tapping Heads

Increase Production • Increase Tap Life
Ruggedly Built for Many Years of Service

Drill-n-Tap 50 Self Reversing Tapping Heads for Tapping and Drilling

New Drill-n-Tap 50 Self Reversing Tapping Heads for Tapping and Drilling

Now you can center drill, drill and tap on your conventional drill press or milling machine using the tapping head for all three steps. Save time by eliminating the need to change from a drill chuck to the tapping head. Our unique design holds drills concentrically.

Tap Capacities M3-M12, #6-1/2"


INSTRUCTION MANUAL
Drill-n-Tap

RX High Production Self Reversing Tapping Heads

RX High Production Self Reversing Tapping Heads

Newest series for manually controlled operation on conventional drill press and milling machines. Heavy duty ball clutch prevents tap breakage. 1.75 to 1 reverse for high production. Ruggedly built for many years of service.

Tap Capacities M1.4-M20, #0-3/4″

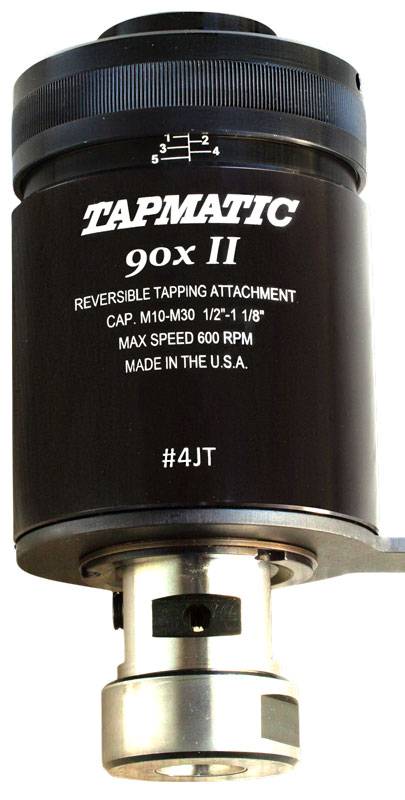

X Series Self Reversing Tapping Attachments

X Series Self Reversing Tapping Attachments

For sensitive tapping with fiber clutch to prevent tap breakage. 1.75 to 1 reverse for high production. Ruggedly built for many years of service.

Tap Capacities M0.5-M30, #0000-1 1/8″


TC/DC Reversing Tapping Attachments

TC/DC Reversing Tapping Attachments

All the same features as the X series but with the addition of depth control adjustment for shallow blind hole tapping.

Tap Capacities M1.4-M18, #0-5/8″


SPD Series Self Reversing Tapping Attachments

SPD Series Self Reversing Tapping Attachments

For manually or automatically controlled machines. SPD tools have positive drive without torque control, recommended for applications with automatically controlled feed. 1 to 1 reverse simplifies adjustments of machines with automatically controlled feed.Tap Capacities M1.4-M30, #0-1 1/8″

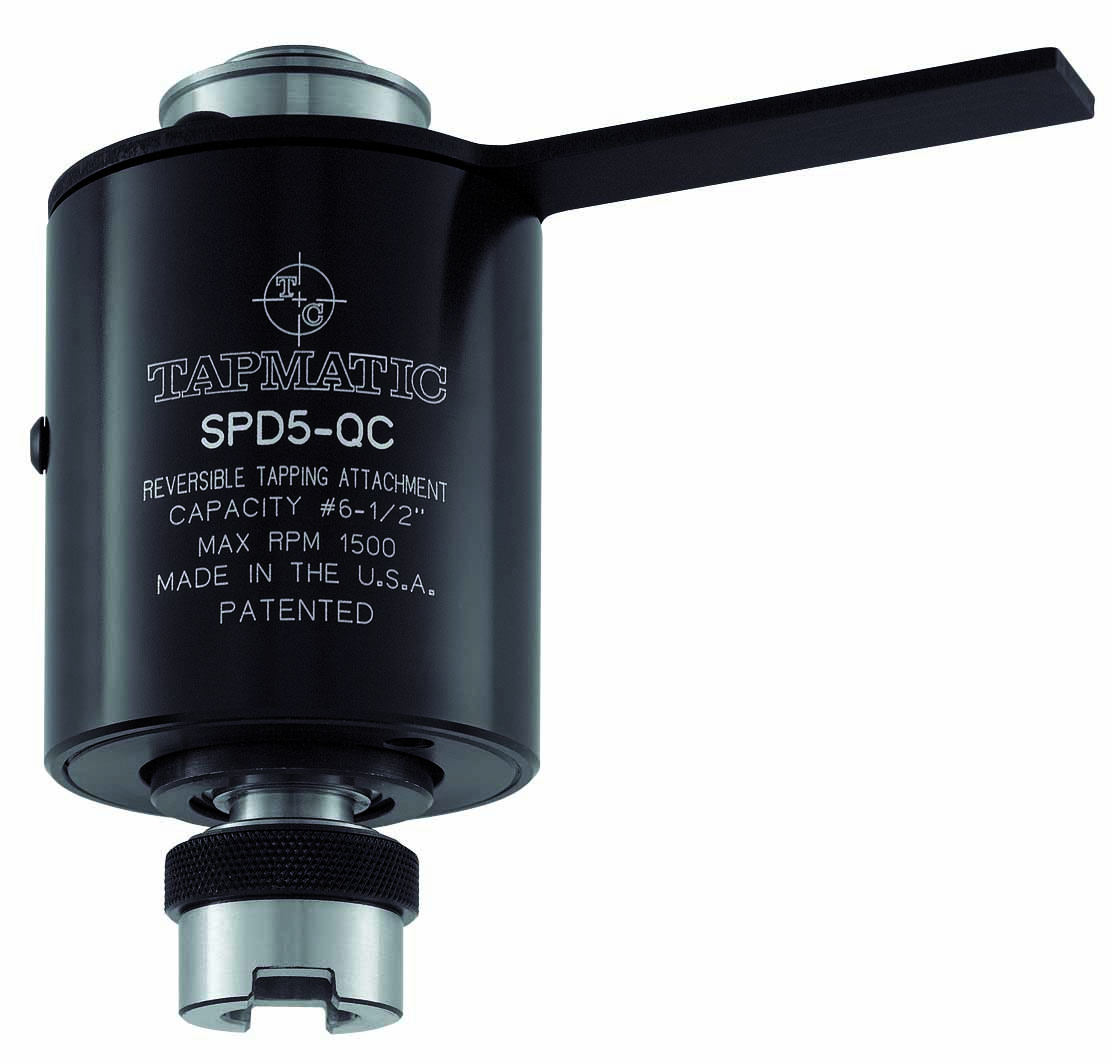

SPD QC self reversing tapping attachments

SPD QC Self Reversing Tapping Attachments

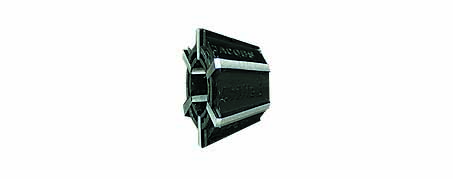

Similar to the SPD series with Rubber Flex collet chucks described above but with Quick Change chuck. SPD11QC for tapping up to M42 or 2″

Tap Capacities M1.4-M42, #0-2″

Tapmatic Catalog Cover
Download Complete
5 Page Catalog Section



For Immediate Assistance call (800) 854-6019 or email us at info@tapmatic.com
