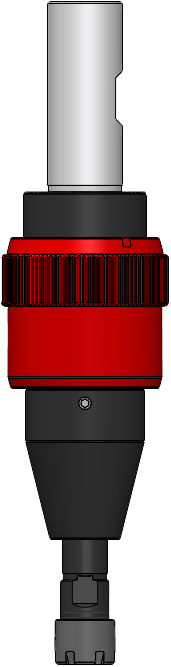

DeBurr-Z with Straight Shank, and ER Collet.
Dimensions are in mm
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | SHANK | Collets | Nut Type | D | d | L | I | T | C | Max RPM | Order Code | Quote |
| DeBurr-Z, 20mm, ER11 | 20mm | ER11 (2.5-6.5) | MINI | 44 | 16 | 128 | 50.8 | 10 | 10 | 10,000 | 57320 | |
| DeBurr-Z, 25mm, ER11 | 25mm | ER11 (2.5-6.5) | MINI | 44 | 16 | 128 | 50.8 | 10 | 10 | 10,000 | 57325 | |
| DeBurr-Z, 1", ER11 | 1" | ER11 (2.5-6.5) | MINI | 44 | 16 | 128 | 50.8 | 10 | 10 | 10,000 | 57301 | |
|
Cutting Tools for use with DeBurr-Z

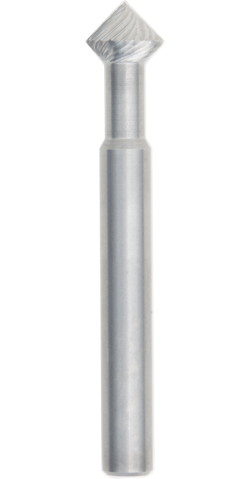

90° Top and underside edge deburring and engraving. Dimensions are in mm
|
|||||
|---|---|---|---|---|---|
| D | d | L | I | Order Code | Quote |
| 9.5 (3/8") | 6.4 | 58.5 | 7.6 | 52MM20590W | |
| 12.7 (1/2") | 6.4 | 61.5 | 10.8 | 52MM20591W | |
| 90° Top edge and underside edge deburring. | |||||
| D | d | L | I | Order Code | |
| 15.9 (5/8") | 6.4 | 60.2 | 15 | 52SKN6W | |
|

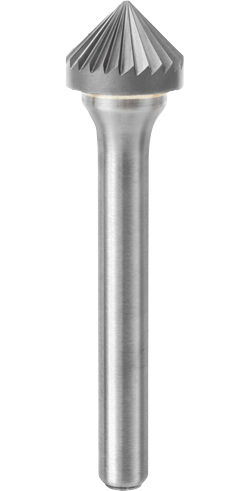

90° Top edge deburring.
Dimensions are in mm
|
|||||
|---|---|---|---|---|---|
| D | d | L | I | Order Code | Quote |
| 9.5 (3/8") | 6.4 | 52.4 | 4.8 | 52SK3W | |
| 12.7 (1/2") | 6.4 | 54.0 | 6.4 | 52SK5W | |
|

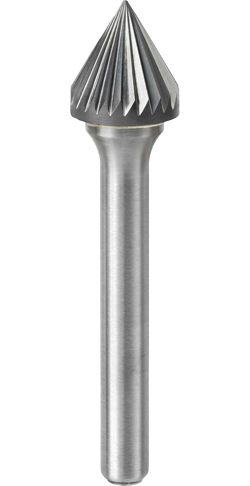

60° Top edge deburring.
Dimensions are in mm
|
|||||
|---|---|---|---|---|---|
| D | d | L | I | Order Code | Quote |
| 9.5 (3/8") | 6.4 | 54.0 | 8.0 | 52SJ3W | |
| 12.7 (1/2") | 6.4 | 58.7 | 11.0 | 52SJ5W | |
|

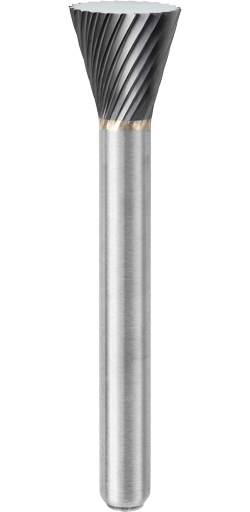

28° Underside edge deburring.
Dimensions are in mm
|
|||||
|---|---|---|---|---|---|
| D | d | L | I | Order Code | Quote |
| 12.7 (1/2") | 6.4 | 57.0 | 12.7 | 52SN5W | |
|

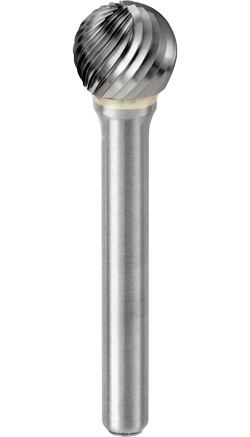

Top and underside edge deburring.
Dimensions are in mm
|
|||||
|---|---|---|---|---|---|
| D | d | L | I | Order Code | Quote |
| 6.4 (1/4") | 3.2 | 44.5 | 5.5 | 52SD2W | |
| 9.5 (3/8") | 6.4 | 52.4 | 8.0 | 52SD3W | |
| 9.5 (3/8") | 6.4 | 160.4 | 8.0 | 52SD3WL6 | |
| 12.7 (1/2") | 6.4 | 54 | 11.0 | 52SD5W | |
| 12.7 (1/2") | 6.4 | 163.5 | 11.0 | 52SD5WL6 | |
| 15.9 (5/8") | 6.4 | 57.0 | 14.3 | 52SD6W | |
| 19.0 (3/4") | 6.4 | 63.5 | 17.5 | 52SD7W | |
