AUTO-REVERSING CNC TAPPING
The fastest way to tap.

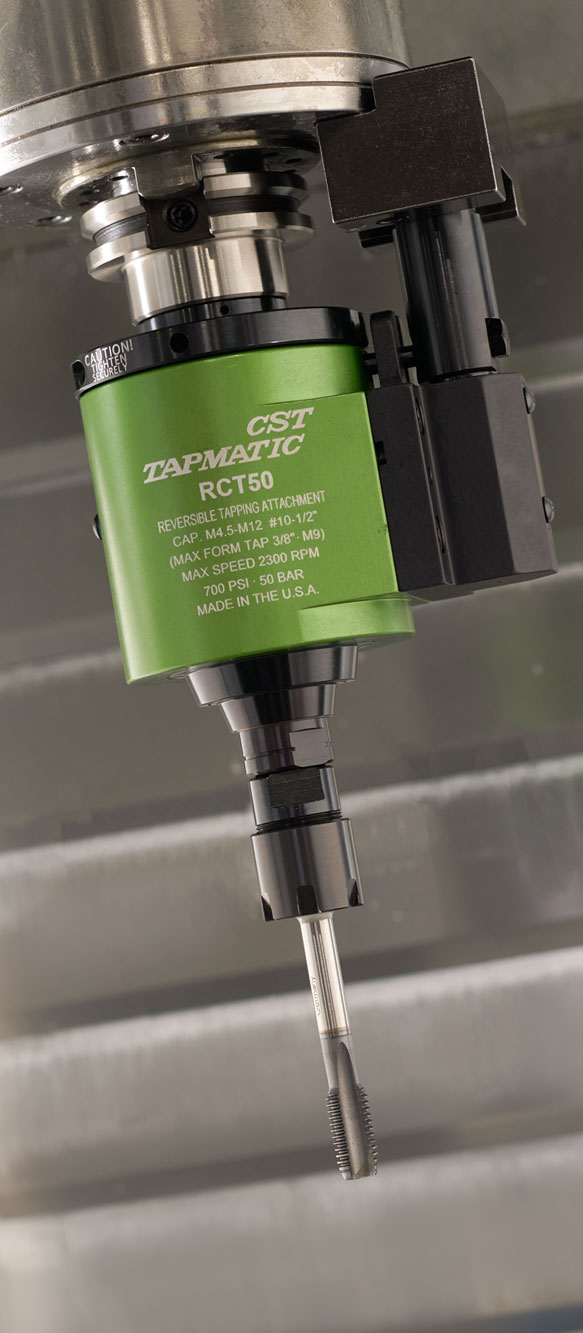

These auto-reversing tapping heads allow the machine spindle to rotate in the forward direction without the need to stop and reverse, two times for every tapped hole. We call this Constant Speed Tapping.
With Constant Speed Tapping, reverse occurs almost instantly when the machine retracts. By eliminating the deceleration, stopping and reacceleration of the machine spindle, the cycle time truly follows the actual program speed and feed rate.
If you have a lot of holes to tap, and cycle time is important, this is the way to do it.
Eliminating machine reversal also improves tap life and reduces energy costs.

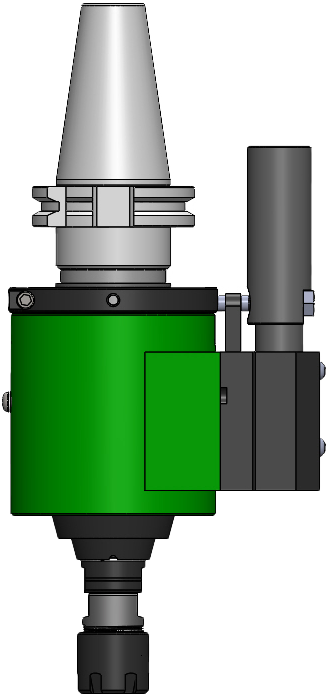

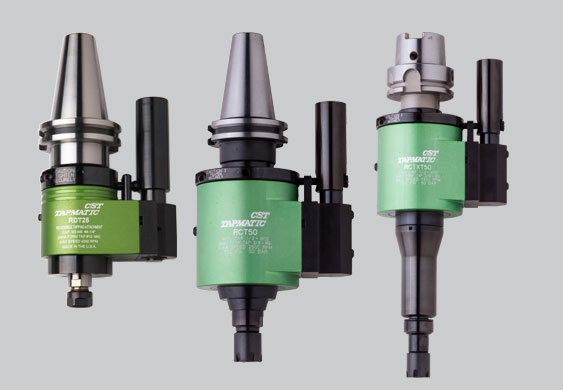

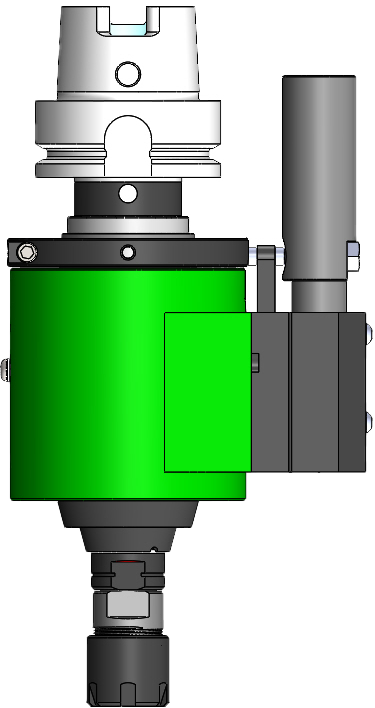

- Available with modular straight shank for use with CAT, BT, or SK steep taper shanks or integral HSK shank.
- Available with high pressure internal coolant.
- Extended length for difficult to reach holes on request.
- For tap sizes up to M12 standard and larger on request.
INSTRUCTION MANUAL:
