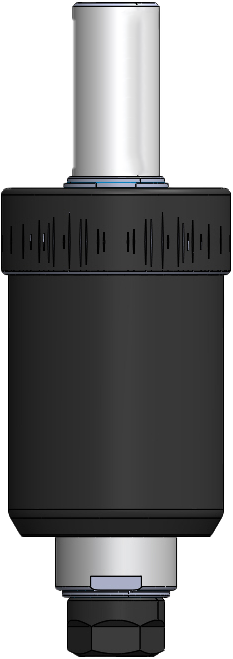

MH Marking Heads with ER Collet
Dimensions are in mm
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Description | SHANK | Collets | Nut Type | D | d | L | I | Stroke C | Order Code | Quote |
| MH 1/2, 20mm, ER16 | 20mm | ER16 | STANDARD | 62 | 28 | 138 | 50 | 12 | 57502016 | |
| MH 1/2, 25mm, ER16 | 25mm | ER16 | STANDARD | 62 | 28 | 138 | 50 | 12 | 57502516 | |
| MH 1/2, 3/4", ER16 | 3/4" | ER16 | STANDARD | 62 | 28 | 138 | 50 | 12 | 57507516 | |
| MH 1/2, 1" , ER16 | 1" | ER16 | STANDARD | 62 | 28 | 138 | 50 | 12 | 57501016 | |
| MH 3/4, 25mm, ER25 | 25mm | ER25 | STANDARD | 86 | 42 | 190 | 56 | 18 | 57752525 | |
| MH 3/4, 1" , ER25 | 1" | ER25 | STANDARD | 86 | 42 | 190 | 56 | 18 | 57751025 | |
We can provide custom stamps with cylindrical shank for holding in the ER collet. Please just let us know your requirement.
