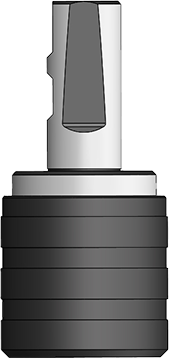

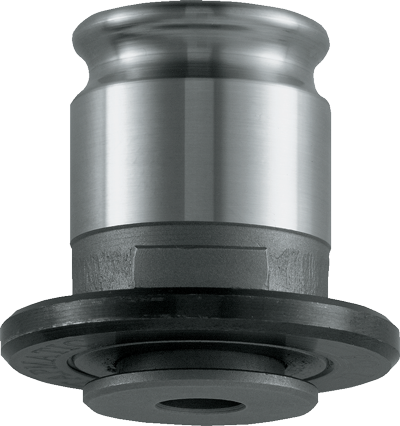

TA with Straight Shank and Quick Change.
(Dimensions in mm)
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | D | L | I | T | C | Order Code | Quote |
| TA0, 16mm, QC | M1-M10 ● #0-1/4" | 16mm | Nr.0 | 29 | 38 | 48 | 7.5 | 5 | 490016 | |
| TA0, 20mm, QC | M1-M10 ● #0-1/4" | 20mm | Nr.0 | 29 | 38 | 50 | 7.5 | 5 | 490020 | |
| TA1, 16mm, QC | M3-M14 ● #8-9/16" | 16mm | Nr.1 | 39 | 39 | 49 | 8 | 5 | 491016 | |
| TA1, 20mm, QC | M3-M14 ● #8-9/16" | 20mm | Nr.1 | 39 | 39 | 51 | 8 | 5 | 491020 | |
| TA1, 25mm, QC | M3-M14 ● #8-9/16" | 25mm | Nr.1 | 39 | 39 | 57 | 8 | 5 | 491025 | |
| TA2, 25mm, QC | M4.5-M24 ● 5/16"-7/8" | 25mm | Nr.2 | 56 | 63 | 57 | 15 | 8.5 | 492025 | |
| TA2, 32mm, QC | M4.5-M24 ● 5/16"-7/8" | 32mm | Nr.2 | 56 | 63 | 57 | 15 | 8.5 | 492032 | |
| TA3, 32mm, QC | M14-M36 ● 3/16"-1 3/8" | 32mm | Nr.3 | 81 | 124 | 61 | 23.5 | 15 | 493032 | |
| TA4, 40mm, QC | M22-M48 ● 7/8"-1 7/8" | 40mm | Nr.4 | 99 | 135.5 | 71 | 25 | 16.5 | 494040 | |
