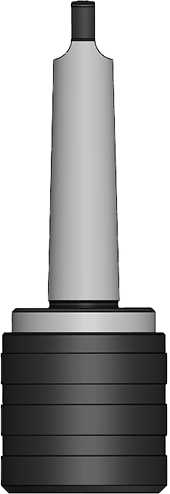

TA with Morse Taper Shank and Quick Change.
(Dimensions in mm)
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Adapter | D | L | T | C | Order Code | Quote |
| TA0, MT1, QC | M1-M10 ● #0-1/4" | No.1 Morse | Nr.0 | 29 | 38 | 7.5 | 5 | 490MT1 | |
| TA0, MT2, QC | M1-M10 ● #0-1/4" | No.2 Morse | Nr.0 | 29 | 38 | 7.5 | 5 | 490MT2 | |
| TA1, MT2, QC | M3-M14 ● 5/16"-7/8" | No.2 Morse | Nr.1 | 39 | 39 | 8 | 5 | 491MT2 | |
| TA1, MT3, QC | M3-M14 ● 5/16"-7/8" | No.3 Morse | Nr.1 | 39 | 39 | 8 | 5 | 491MT3 | |
| TA2, MT3, QC | M4.5-M24 ● 5/16"-7/8" | No.3 Morse | Nr.2 | 56 | 63 | 15 | 8.5 | 492MT3 | |
| TA2, MT4, QC | M4.5-M24 ● 5/16"-7/8" | No.4 Morse | Nr.2 | 56 | 63 | 15 | 8.5 | 492MT4 | |
| TA2, MT5, QC | M4.5-M24 ● 5/16"-7/8" | No.5 Morse | Nr.2 | 56 | 63 | 15 | 8.5 | 492MT5 | |
| TA3, MT4, QC | M14- M36 ● 13/16"-1 3/8" | No.4 Morse | Nr.3 | 81 | 124 | 23.5 | 15 | 493MT4 | |
| TA3, MT5, QC | M14- M36 ● 13/16"-1 3/8" | No.5 Morse | Nr.3 | 81 | 124 | 23.5 | 15 | 493MT5 | |
| TA4, MT5, QC | M22-M48 ● 7/8"-1 7/8" | No.5 Morse | Nr.4 | 99 | 135.5 | 25 | 16.5 | 494MT5 | |
| TA4,MT6, QC | M22-M48 ● 7/8"-1 7/8" | No.6 Morse | Nr.4 | 99 | 135.5 | 25 | 16.5 | 494MT6 | |
