Rubber Flex Multi Range Collets

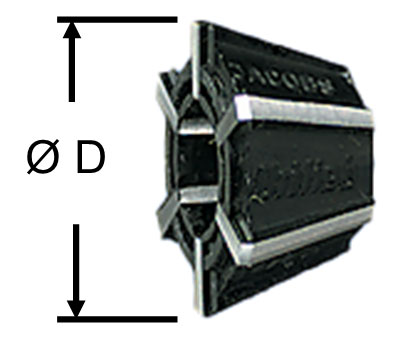

Dimensions are in mm
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Rubber Flex Collet Series | For Use With Tap Holder | Clamping Capacity | Tap Capacity Metric Sizes (DIN 371, 374) | Tap Capacity Inch Sizes | D | Standard or Special Size | Order Code | Quote |
| 21 Series | SM2 or RxII30 | 1.0-2.5 | M1.6 | None | 15 | Special | 21500 | |
| 21 Series | SM2 or RxII30 | 2.5-4.5 | M1.6-M4 | #0-#8 | 15 | Standard | 21600 | |
| 21 Series | SM2 or RxII30 | 4.5-6.5 | M4-M6 | #10-1/4" | 15 | Standard | 21700 | |
| 22 Series | SM4 or RxII50 | 4.5-8.0 | M4-M10 | #10-1/4" | 23 | Special | 22000 | |
| 22 Series | SM4 or RxII50 | 3.5-6.5 | M3-M6 | #0-1/4" | 23 | Standard | 22100 | |
| 22 Series | SM4 or RxII50 | 6.5-10.0 | M7-M12 | 5/16"-1/2" | 23 | Standard | 22200 | |
| 22 Series | SM4 or RxII50 | 2.0-4.5 | M1.6-M4 | #0-#8 | 23 | Special | 22300 | |
| 24 Series | SM6 or RxII70 | 7.0-13.0 | M7-M16 | 5/16"-5/8" | 32 | Special | 24000 | |
| 24 Series | SM6 or RxII70 | 4.5-10.0 | M4-M12 | #10-1/2" | 32 | Standard | 24100 | |
| 24 Series | SM6 or RxII70 | 2.8-7.0 | M2-M7 | #0-1/4" | 32 | Special | 24300 | |
| 24 Series | SM6 or RxII70 | 9.0-15.0 | M10-M18 | 1/2"-3/4" | 32 | Standard | 24500 | |
| 26 Series | SM8 or 90xII | 10.0-16.0 | M10, M14-M20 | 9/16"-3/4" | 44.5 | Standard | 26100 | |
| 26 Series | SM8 or 90xII | 16.0-23.0 | M20-M30 | 13/16"-1 1/8" | 44.5 | Standard | 26200 | |
