Torque Bars

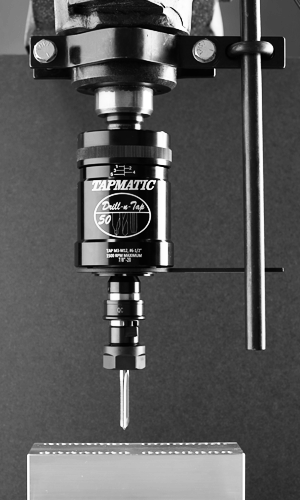

Always mount a torque bar to hold the tapping attachment\'s stop arm from rotating. The torque bar must be mounted securely to the table or quill of the machine. The torque bar installation must be stronger than the largest tap in the capacity range of your tapping attachment. Please see the complete installation and operation instructions provided with your tapping attachment. |
Quill Mount Torque Bars
|
||||
|---|---|---|---|---|
| Description | For Max Tap Size | Fits Quill Diameters | Order Code | Quote |
| Small Quill Mount Torque Bar | M16 or 1/2" | 38-60mm or 1 1/2"-2 3/8" | 29099 | |
| Large Quill Mount Torque Bar | M18 or 3/4" | 60-114mm or 2 3/8"-4 1/2" | 290991 | |
|
Table Mount Torque Bars
|
|||
|---|---|---|---|
| Description | For Max Tap Size | Order Code | Quote |
| Large Table Mount Torque Bar | M33 or 1 3/4" | 29096 | |
| Table Mount Torque Bar | M18 or 3/4" | 29097 | |
