TC Type Torque Control Quick Change Adapters for Inch Taps

TC Type Torque Control Quick Change Adapters for Inch Taps

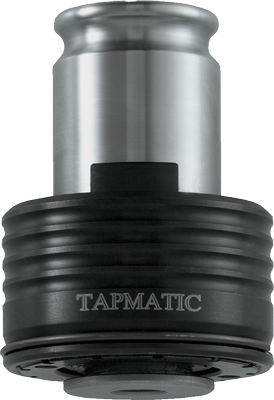

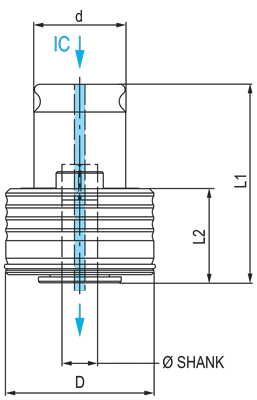

TC Type Torque Control Quick Change Adapters for Inch Taps (Dimensions in inch)
Description	Adapter Size	Tap Sizes	Shank Inch	Square Inch	D	d	L1	L2	Order Code	Quote
TC0 Adapter	Nr.0	#0-#6	.141	.110	23	13	40.5	21	1046
TC0 Adapter	Nr.0	#8	.168	.131	23	13	40.5	21	1047
TC0 Adapter	Nr.0	#10	.194	.152	23	13	40.5	21	1048
TC0 Adapter	Nr.0	#12	.220	.165	23	13	40.5	21	1049
TC0 Adapter	Nr.0	1/4"	.255	.191	23	13	40.5	21	1050


Description	Adapter Size	Tap Sizes	Shank Inch	Square Inch	D	d	L1	L2	Order Code	Quote
TC1 Adapter	Nr.1	#0-#6	.141	.110	32	19	46.5	25	1051
TC1 Adapter	Nr.1	#8	.168	.131	32	19	46.5	25	1052
TC1 Adapter	Nr.1	#10	.194	.152	32	19	46.5	25	1053
TC1 Adapter	Nr.1	#12	.220	.165	32	19	46.5	25	1054
TC1 Adapter	Nr.1	1/4"	.255	.191	32	19	46.5	25	1055
TC1 Adapter	Nr.1	5/16"	.318	.238	32	19	46.5	25	1056
TC1 Adapter	Nr.1	3/8"	.381	.286	32	19	46.5	25	1057
TC1 Adapter	Nr.1	7/16"	.323	.242	32	19	46.5	25	1058
TC1 Adapter	Nr.1	1/2"	.367	.275	32	19	46.5	25	1059
TC1 Adapter	Nr.1	9/16"	.429	.322	32	19	46.5	25	10595
TC1 Adapter	Nr.1	1/8" PIPE	.313	.234	32	19	46.5	25	10600
TC1 Adapter	Nr.1	1/8" PIPE	.438	.328	32	19	46.5	25	10611


Description	Adapter Size	Tap Sizes	Shank Inch	Square Inch	D	d	L1	L2	Order Code	Quote
TC2 Adapter	Nr.2	1/4"	.255	.191	50	31	69	34	10614
TC2 Adapter	Nr.2	5/16"	.318	.238	50	31	69	34	1062
TC2 Adapter	Nr.2	3/8"	.381	.286	50	31	69	34	1063
TC2 Adapter	Nr.2	7/16"	.323	.242	50	31	69	34	1064
TC2 Adapter	Nr.2	1/2"	.367	.275	50	31	69	34	1065
TC2 Adapter	Nr.2	9/16"	.429	.322	50	31	69	34	1066
TC2 Adapter	Nr.2	5/8"	.480	.360	50	31	69	34	1067
TC2 Adapter	Nr.2	11/16"	.542	.406	50	31	69	34	1068
TC2 Adapter	Nr.2	3/4"	.590	.442	50	31	69	34	1069
TC2 Adapter	Nr.2	13/16"	.652	.489	50	31	69	34	1070
TC2 Adapter	Nr.2	7/8"	.697	.523	50	31	69	34	1071
TC2 Adapter	Nr.2	1/4" PIPE	.562	.421	50	31	69	34	10722
TC2 Adapter	Nr.2	3/8" PIPE	.700	.531	50	31	69	34	10733
TC2 Adapter	Nr.2	1/2" PIPE	.687	.515	50	31	69	34	10744
TC2 Adapter	Nr.2	1"	.800	.600	50	31	69	34	10711


Description	Adapter Size	Tap Sizes	Shank Inch	Square Inch	D	d	L1	L2	Order Code	Quote
TC3 Adapter	Nr.3	3/4"	.590	.442	72	48	100.5	45	1074
TC3 Adapter	Nr.3	13/16"	.652	.489	72	48	100.5	45	1075
TC3 Adapter	Nr.3	7/8"	.697	.523	72	48	100.5	45	1076
TC3 Adapter	Nr.3	3/8" PIPE	.700	.531	72	48	100.5	45	1082
TC3 Adapter	Nr.3	1/2" PIPE	.687	.515	72	48	100.5	45	10821
TC3 Adapter	Nr.3	15/16"	.760	.570	72	48	100.5	45	1077
TC3 Adapter	Nr.3	1"	.800	.600	72	48	100.5	45	1078
TC3 Adapter	Nr.3	1 1/8"	.896	.672	72	48	100.5	45	1079
TC3 Adapter	Nr.3	1 1/4"	1.021	.766	72	48	100.5	45	1080
TC3 Adapter	Nr.3	1 3/8"	1.108	.831	72	48	100.5	45	1081
TC3 Adapter	Nr.3	3/4" PIPE	.906	.679	72	48	100.5	45	10822
TC3 Adapter	Nr.3	1" PIPE	1.125	.843	72	48	100.5	45	10833


Description	Adapter Size	Tap Sizes	Shank Inch	Square Inch	D	d	L1	L2	Order Code	Quote
TC4 Adapter	Nr.4	1"	.800	.600	95	60	131	68	10835
TC4 Adapter	Nr.4	1 1/8"	.896	.672	95	60	131	68	10836
TC4 Adapter	Nr.4	1 1/4"	1.021	.766	95	60	131	68	10837
TC4 Adapter	Nr.4	1 3/8"	1.108	.831	95	60	131	68	1084
TC4 Adapter	Nr.4	3/4" PIPE	.906	.679	95	60	131	68	10880
TC4 Adapter	Nr.4	1" PIPE	1.125	.843	95	60	131	68	10882
TC4 Adapter	Nr.4	1 1/2"	1.233	.925	95	60	131	68	1085
TC4 Adapter	Nr.4	1 5/8"	1.305	.979	95	60	131	68	1086
TC4 Adapter	Nr.4	1 3/4"	1.430	1.072	95	60	131	68	1087
TC4 Adapter	Nr.4	1 7/8"	1.519	1.139	95	60	131	68	10875
TC4 Adapter	Nr.4	1 1/4" PIPE	1.312	.984	95	60	131	68	10899
TC4 Adapter	Nr.4	1 1/2" PIPE	1.500	1.125	95	60	131	68	10900

TC Type Torque Control Quick Change Adapters for Metric Taps

TC Type Torque Control Quick Change Adapters for Metric Taps

TC Type Torque Control Quick Change Adapters for Metric Taps (Dimensions in mm)
Description	Adapter Size	Tap Sizes	Shank MM	Square MM	D	d	L1	L2	Order Code	Quote
TC0 Adapter	Nr.0	M2, M2.5, M4	2.8	2.1	23	13	40.5	21	TC0-028021
TC0 Adapter	Nr.0	M3, M5	3.5	2.7	23	13	40.5	21	TC0-035027
TC0 Adapter	Nr.0	M3.5	4	3	23	13	40.5	21	TC0-040030
TC0 Adapter	Nr.0	M4	4.5	3.4	23	13	40.5	21	TC0-045034
TC0 Adapter	Nr.0	M4, M4.5	5	4	23	13	40.5	21	TC0-050040
TC0 Adapter	Nr.0	M4.5, M5, M6, M8	6	4.9	23	13	40.5	21	TC0-060049
TC0 Adapter	Nr.0	M8	8	6.2	23	13	40.5	21	TC0-080062
TC0 Adapter	Nr.0	M7, M9, M10	7	5.5	23	13	40.5	21	TC0-070055

(Dimensions in mm)
Description	Adapter Size	Tap Sizes	Shank MM	Square MM	D	d	L1	L2	Order Code	Quote
TC1 Adapter	Nr.1	M3, M5	3.5	2.7	32	19	46.5	25	TC1-035027
TC1 Adapter	Nr.1	M3.5	4	3	32	19	46.5	25	TC1-040030
TC1 Adapter	Nr.1	M4	4.5	3.4	32	19	46.5	25	TC1-045034
TC1 Adapter	Nr.1	M4, M4.5	5	4	32	19	46.5	25	TC1-050040
TC1 Adapter	Nr.1	M4.5, M5, M6, M8	6	4.9	32	19	46.5	25	TC1-060049
TC1 Adapter	Nr.1	M8	8	6.2	32	19	46.5	25	TC1-080062
TC1 Adapter	Nr.1	M7, M9, M10	7	5.5	32	19	46.5	25	TC1-070055
TC1 Adapter	Nr.1	M12	9	7	32	19	46.5	25	TC1-090070
TC1 Adapter	Nr.1	M10	10	8	32	19	46.5	25	TC1-100080
TC1 Adapter	Nr.1	M14	11	9	32	19	46.5	25	TC1-110090

(Dimensions in mm)
Description	Adapter Size	Tap Sizes	Shank MM	Square MM	D	d	L1	L2	Order Code	Quote
TC2 Adapter	Nr.2	M4.5, M5, M6, M8	6	4.9	50	31	69	34	TC2-060049
TC2 Adapter	Nr.2	M8	8	6.2	50	31	69	34	TC2-080062
TC2 Adapter	Nr.2	M7, M9, M10	7	5.5	50	31	69	34	TC2-070055
TC2 Adapter	Nr.2	M12	9	7	50	31	69	34	TC2-090070
TC2 Adapter	Nr.2	M10	10	8	50	31	69	34	TC2-100080
TC2 Adapter	Nr.2	M14	11	9	50	31	69	34	TC2-110090
TC2 Adapter	Nr.2	M16	12	9	50	31	69	34	TC2-120090
TC2 Adapter	Nr.2	M18	14	11	50	31	69	34	TC2-140110
TC2 Adapter	Nr.2	M20	16	12	50	31	69	34	TC2-160120
TC2 Adapter	Nr.2	M22, M24, M25, M26	18	14.5	50	31	69	34	TC2-180145

(Dimensions in mm)
Description	Adapter Size	Tap Sizes	Shank MM	Square MM	D	d	L1	L2	Order Code	Quote
TC3 Adapter	Nr.3	M14	11	9	72	48	100.5	45	TC3-110090
TC3 Adapter	Nr.3	M16	12	9	72	48	100.5	45	TC3-120090
TC3 Adapter	Nr.3	M18	14	11	72	48	100.5	45	TC3-140110
TC3 Adapter	Nr.3	M20	16	12	72	48	100.5	45	TC3-160120
TC3 Adapter	Nr.3	M22, M24, M25, M26	18	14.5	72	48	100.5	45	TC3-180145
TC3 Adapter	Nr.3	M27, M28	20	16	72	48	100.5	45	TC3-200160
TC3 Adapter	Nr.3	M30, M32	22	18	72	48	100.5	45	TC3-200180
TC3 Adapter	Nr.3	M33	25	20	72	48	100.5	45	TC3-250200
TC3 Adapter	Nr.3	M34, M35, M36, M38	28	22	72	48	100.5	45	TC3-280220

(Dimensions in mm)
Description	Adapter Size	Tap Sizes	Shank MM	Square MM	D	d	L1	L2	Order Code	Quote
TC4 Adapter	Nr.4	M22, M24, M25, M26	18	14.5	95	60	131	68	TC4-180145
TC4 Adapter	Nr.4	M27, M28	20	16	95	60	131	68	TC4-200160
TC4 Adapter	Nr.4	M30, M32	22	18	95	60	131	68	TC4-220180
TC4 Adapter	Nr.4	M33	25	20	95	60	131	68	TC4-250200
TC4 Adapter	Nr.4	M34, M35, M36, M38	28	22	95	60	131	68	TC4-280220
TC4 Adapter	Nr.4	M39, M40, M42	32	24	95	60	131	68	TC4-320240
TC4 Adapter	Nr.4	M45, M48, M50	36	29	95	60	131	68	TC4-360290
