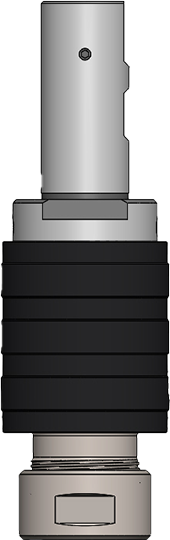

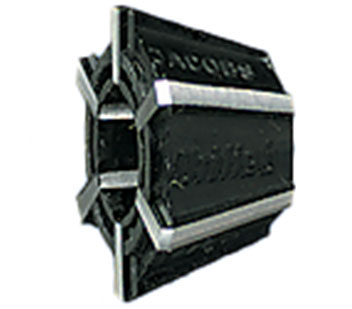

SM with Straight Shank and Rubber-Flex Collet
(Dimensions in mm)
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | D | d | L | I | T | C | Order Code | Quote |
| SM2, 16mm, 21 Series | M1.4-M7 ● #0-1/4" | 16mm | 21 Series | 27 | 19 | 53 | 48 | 4.5 | 6 | 023216 | |
| SM2, 5/8", 21 Series | M1.4-M7 ● #0-1/4" | 5/8" | 21 Series | 27 | 19 | 53 | 48 | 4.5 | 6 | 023262 | |
| SM4, 20mm, 22 Series | M3-M12 ● #6-1/2" | 20mm | 22 Series | 38 | 27 | 71 | 50 | 7 | 7 | 023420 | |
| SM4, 3/4", 22 Series | M3-M12 ● #6-1/2" | 3/4" | 22 Series | 38 | 27 | 71 | 48 | 7 | 7 | 023475 | |
| SM6, 25mm, 24 Series | M5-M18 ● #10-3/4" | 25mm | 24 Series | 48 | 37 | 96 | 56 | 11 | 11 | 023625 | |
| SM6, 1", 24 Series | M5-M18 ● #10-3/4" | 1" | 24 Series | 48 | 37 | 96 | 56 | 11 | 11 | 023610 | |
| SM8, 32mm, 26 Series | M10-M30 ● 1/2"-1 1/8" | 32mm | 26 Series | 63.5 | 57 | 128 | 60 | 17 | 17 | 023832 | |
| SM8, 1 1/2", 26 Series | M10-M30 ● 1/2"-1 1/8" | 1 1/2" | 26 Series | 63.5 | 57 | 128 | 70 | 17 | 17 | 023815 | |
