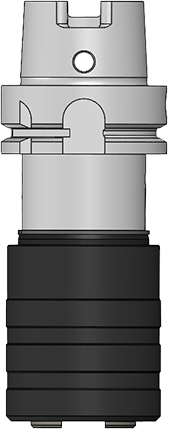

TIC with HSK shank, Quick Change and Internal Coolant
(Dimensions in mm)
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Adapter | D | L | T | C | Order Code | Quote |
| TIC1, HSK50A, QC | M3-M14 ● #8-9/16" | HSK50A | Nr.1 | 43 | 91 | 7.5 | 5 | 49C1H50 | |
| TIC1, HSK63A, QC | M3-M14 ● #8-9/16" | HSK63A | Nr.1 | 43 | 93 | 7.5 | 5 | 49C1H63 | |
| TIC1, HSK80A, QC | M3-M14 ● #8-9/16" | HSK80A | Nr.1 | 43 | 97 | 7.5 | 5 | 49C1H80 | |
| TIC1, HSK100A, QC | M3-M14 ● #8-9/16" | HSK100A | Nr.1 | 43 | 98 | 7.5 | 5 | 49C1H100 | |
| TIC2, HSK50A, QC | M4.5-M24 ● 5/16"-7/8" | HSK50A | Nr.2 | 59 | 140 | 10 | 7 | 49C2H50 | |
| TIC2, HSK63A, QC | M4.5-M24 ● 5/16"-7/8" | HSK63A | Nr.2 | 59 | 130 | 10 | 7 | 49C2H63 | |
| TIC2, HSK80A, QC | M4.5-M24 ● 5/16"-7/8" | HSK80A | Nr.2 | 59 | 133 | 10 | 7 | 49C2H80 | |
| TIC2, HSK100A, QC | M4.5-M24 ● 5/16"-7/8" | HSK100A | Nr.2 | 59 | 135 | 10 | 7 | 49C2H100 | |
