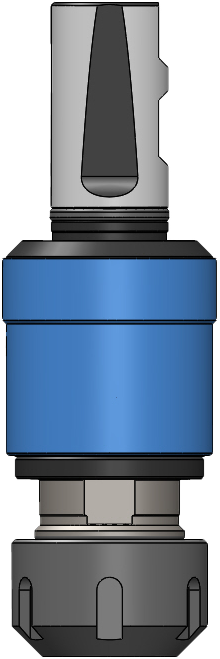

SynchroFlex® II Tap Holder with Modular Straight Shank, ER Collet, and Internal Coolant.
(Dimensions in mm)
|

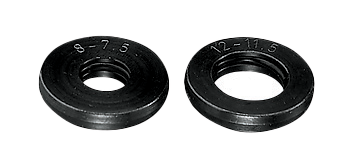

|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | Nut Type | D1 | D | d | L | I | T | C | Order Code | Quote |
| SFT II 5, 12mm, ER8 | M1-M3 ● #00-#5 | 12mm | ER8 | MINI | 12 | 12 | 12 | 28 | 72-32 | 0.5 | 0.5 | 41051208 | |
| SFT II 10, 16mm, ER11 | M2-M5 ● #2-#10 | 16mm | ER11 | STANDARD | 23.5 | 23.5 | 19 | 52 | 44.5 | 0.5 | 0.5 | 41101611 | |
| SFT II 10, 20mm, ER11 | M2-M5 ● #2-#10 | 20mm | ER11 | STANDARD | 23.5 | 23.5 | 19 | 52 | 50.8 | 0.5 | 0.5 | 41102011 | |
| SFT II 10, 25mm, ER11 | M2-M5 ● #2-#10 | 25mm | ER11 | STANDARD | 23.5 | 23.5 | 19 | 52 | 50.8 | 0.5 | 0.5 | 41102511 | |
| SFT II 10, 1", ER11 | M2-M5 ● #2-#10 | 1 inch | ER11 | STANDARD | 23.5 | 23.5 | 19 | 52 | 50.8 | 0.5 | 0.5 | 4110111 | |
| SFT II 50, 20mm, ER20 | M4-M12 ● #8-1/2" | 20mm | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 69 | 50.8 | 0.5 | 0.5 | 41502020 | |
| SFT II 50, 25mm, ER20 | M4-M12 ● #8-1/2" | 25mm | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 69 | 50.8 | 0.5 | 0.5 | 41502520 | |
| SFT II 50, 1", ER20 | M4-M12 ● #8-1/2" | 1 inch | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 69 | 50.8 | 0.5 | 0.5 | 4150120 | |
| SFT II 75, 25mm, ER25 | M8-M20 ● 1/4"-3/4" | 25mm | ER25 | SEAL DISK | 45.6 | 44 | 42 | 88 | 50.8 | 0.5 | 0.5 | 41752525 | |
| SFT II 75, 1", ER25 | M8-M20 ● 1/4"-3/4" | 1 inch | ER25 | SEAL DISK | 45.6 | 44 | 42 | 88 | 50.8 | 0.5 | 0.5 | 4175125 | |
| SFT II 100, 25mm, ER40 | M16-M30 ● 5/8"-1" | 25mm | ER40 | SEAL DISK | 63.6 | 62 | 63 | 117 | 50.8 | 0.5 | 0.5 | 411002540 | |
| SFT II 100, 1", ER40 | M16-M30 ● 5/8"-1" | 1 inch | ER40 | SEAL DISK | 63.6 | 62 | 63 | 117 | 50.8 | 0.5 | 0.5 | 41100140 | |
| SFT II 150, 40mm, ER50 | M22-M48 ● 7/8"-1 7/8" | 40mm | ER50 | SEAL DISK | 86 | 80 | 78 | 167 | 70 | 1.5 | 1.5 | 411504050 | |
