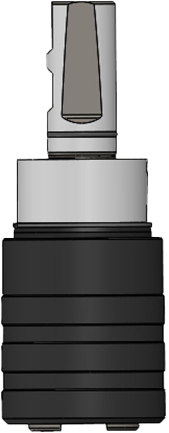

TIC with Straight Shank, Quick Change and Internal Coolant
(Dimensions in mm)
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Adapter | D | L | I | T | C | Order Code | Quote |
| TIC1, 025, QC | M3-M14 ● #8-9/16" | 25mm | Nr.1 | 43 | 62 | 57 | 7.5 | 5 | 49C1025 | |
| TIC2, 025, QC | M4.5-M24 ● 5/16"-7/8" | 25mm | Nr.2 | 59 | 98 | 57 | 10 | 7 | 49C2025 | |
| TIC3, 032, QC | M14-M36 ● 13/16"-1 3/8" | 32mm | Nr.3 | 80 | 147 | 61 | 20 | 15 | 49C3032 | |
