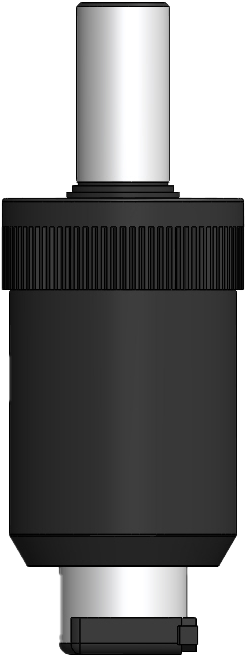

MH Marking Heads with Type Holder
MH Marking Heads with Type Holder
SELECT A STEEP TAPER SHANK
SELECT A STEEP TAPER SHANK
MH Marking Heads with Type Holder
Dimensions are in mm
DescriptionSHANKDLIStroke CEFOrder Code Quote
MH 1/2, 20mm, TH 20mm 62 128 50 12 6.4 24.5 575020TH
MH 1/2, 25mm, TH 25mm 62 128 50 12 6.4 24.5 575025TH
MH 1/2, 3/4", TH 3/4" 62 128 50 12 6.4 24.5 575075TH
MH 1/2, 1", TH 1" 62 128 50 12 6.4 24.5 575010TH
MH 1/2, No. 3 Morse, TH No.3 Morse 62 128 50 12 6.4 24.5 575003TH
MH 3/4, 25mm, TH 25mm 86 172 56 18 6.4 40 577525TH
MH 3/4, 1", TH 1" 86 172 56 18 6.4 40 577510TH
Type Holders for fast change over.
Dimensions are in mm
DescriptionABEFOrder Code Quote
Type Holder for MH 1/2 24 6.35 6.4 24 5750THI
Type Holder for MH 3/4 40 6.35 6.4 40 5775THI
Large Type Holder, MH 3/4 40 6.35 9.6 40 5775THILG






Type for Use in Type Holder Marking Heads
Dimensions are in mm
DescriptionSize WXYZOrder Code Quote
Set of 26, 1mm Letters 1 1.6 6.4 22.2 5707111006
Set of 10, 1mm Numbers 1 1.6 6.4 22.2 5707101000
1pc Blank Spacer, 1mm 1 1.6 6.4 22.2 5707014002
Set of 26, 1.5mm Letters 1.5 1.6 6.4 22.2 5707112009
Set of 10, 1.5mm Numbers 1.5 1.6 6.4 22.2 5707102003
1pc Blank Spacer, 1.5mm 1.5 1.6 6.4 22.2 5707014002
Set of 26, 2mm Letters 2 2 6.4 22.2 5707113001
Set of 10, 2mm Numbers 2 2 6.4 22.2 5707103006
1pc Blank Spacer, 2mm 2 2 6.4 22.2 5707015005
Set of 26, 2.5mm Letters 2.5 2.4 6.4 22.2 5707114004
Set of 10, 2.5mm Numbers 2.5 2.4 6.4 22.2 5707104009
1pc Blank Spacer, 2.5mm 2.5 2.4 6.4 22.2 5707016008
Set of 26, 3mm Letters 3 3.2 6.4 22.2 5707115007
Set of 10, 3mm Numbers 3 3.2 6.4 22.2 5707105001
1pc Blank Spacer, 3mm 3 3.2 6.4 22.2 5707017000
Set of 26, 4mm Letters 4 4 6.4 22.2 5707120001
Set of 10, 4mm Numbers 4 4 6.4 22.2 5707118008
1pc Blank Spacer, 4mm 4 4 6.4 22.2 5707021008
Set of 26, 4mm Letters 5 4.8 6.4 22.2 5707117002
Set of 10, 4mm Numbers 5 4.8 6.4 22.2 5707106004
1pc Blank Spacer, 4mm 5 4.8 6.4 22.2 5707018003
Set of 26, 4mm Letters 6 6.5 9.5 19 5707950*
Set of 10, 4mm Numbers 6 6.5 9.5 19 5707951*
1pc Blank Spacer, 4mm 6 6.5 9.5 19 5707952*
Please note that we can also offer individual numbers and letters. Please let us know the size and characters you need in a note when you submit your quote request.
In addition to standard type we can also offer custom made stamps for logos, or specific text.
*Only for use with Type Holder 5775THILG and MH 3/4 with Type Holder.
