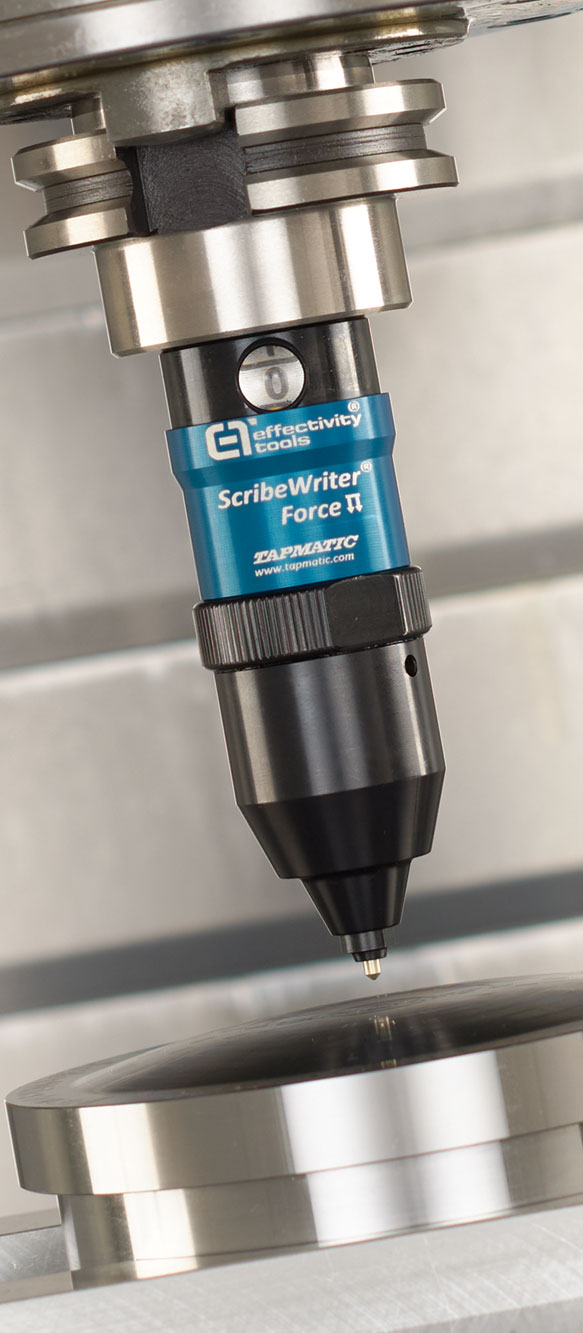

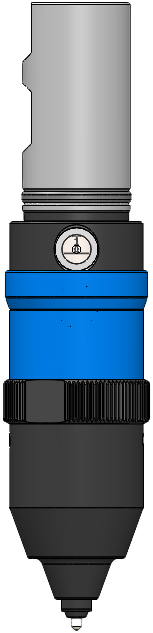

SCRIBEWRITER FORCE II
Faster than engraving, scribing produces
fine lines with a long life carbide stylus.
fine lines with a long life carbide stylus.

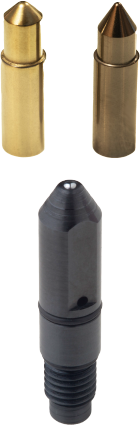

With Tapmatics ScribeWriter you can mark different types of materials from softer metals like aluminum to hardened steel up to 62 HRC. The marking force is completely adjustable by turning the knurled sleeve. There is no need to disassemble to change springs thanks to our unique adjustment feature that employs two types of springs. A heavy square wire spring is in effect for all force settings and an additional machined flexure spring comes into effect at the highest settings. The setting reference number can be easily read through a magnification lens. The long life carbide stylus is simple to change and we offer three standard options, 90 or 60 degree scribing points or 2mm diameter rolling ball point.
With scribing no spindle rotation is used, and the feed rate for entering the part and scribing the mark, is much faster compared to engraving with small, delicate cutting tools.
- Mark curved surfaces with surface variation of up to 5 mm thanks to the floating stylus.
- No limits on the size of the marking area.

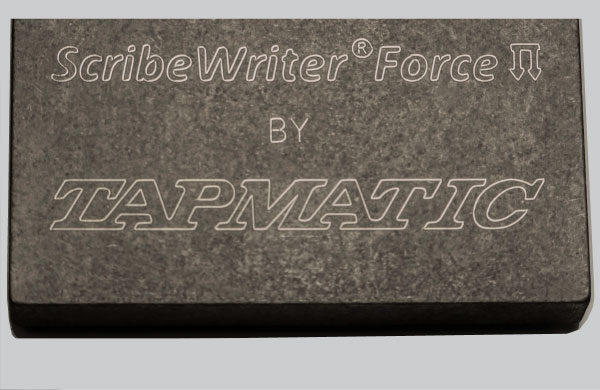

- Scribe fine lines to create characters with different fonts or even logos and artwork.
INSTRUCTION MANUAL: ScribeWriter Force II MSDS/SAFETY INFORMATION: Carbide Stylus
WARNING: This product contains Cobalt, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
